Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut dapibus facilisis fringilla. Integer efficitur diam id lorem dictum, eu molestie lacus condimentum. Sed volutpat lectus quis ultrices ullamcorper.

Characteristics
  • Number of rollers:
    4-roller
  • Operation:
    hydraulic
  • Other characteristics:
    CNC
  • Sheet thickness:Min.: 2 min
    Max.: 200 mm
  • Sheet Size:
    Min. 1000 mm
    Max.: 12000 mm

Standard equipment:

  • Two motorised rolls
  • Induction hardened rolls
  • Polished roll surface
  • Motorised pre-bending and bending
  • Bending roll tilt
  • Rolls with extensions for bending profiles

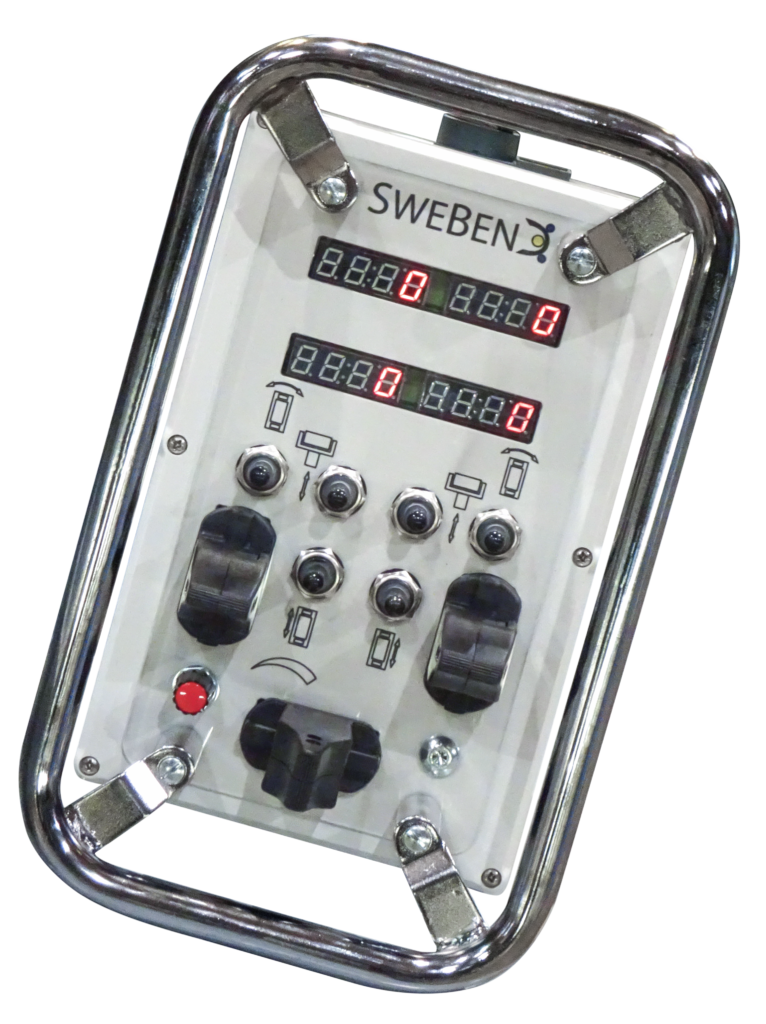

  • Mobile pedal controls
  • Emergency barrier around the machine
  • CE certified machine

Optional features:

  • Digital readouts for roll position
  • Conical device
  • Painting with special colours
  • Profile bending rings
  • Numerical controls
  • Version with vertical rolls
  • Version with corrugated rolls
Description

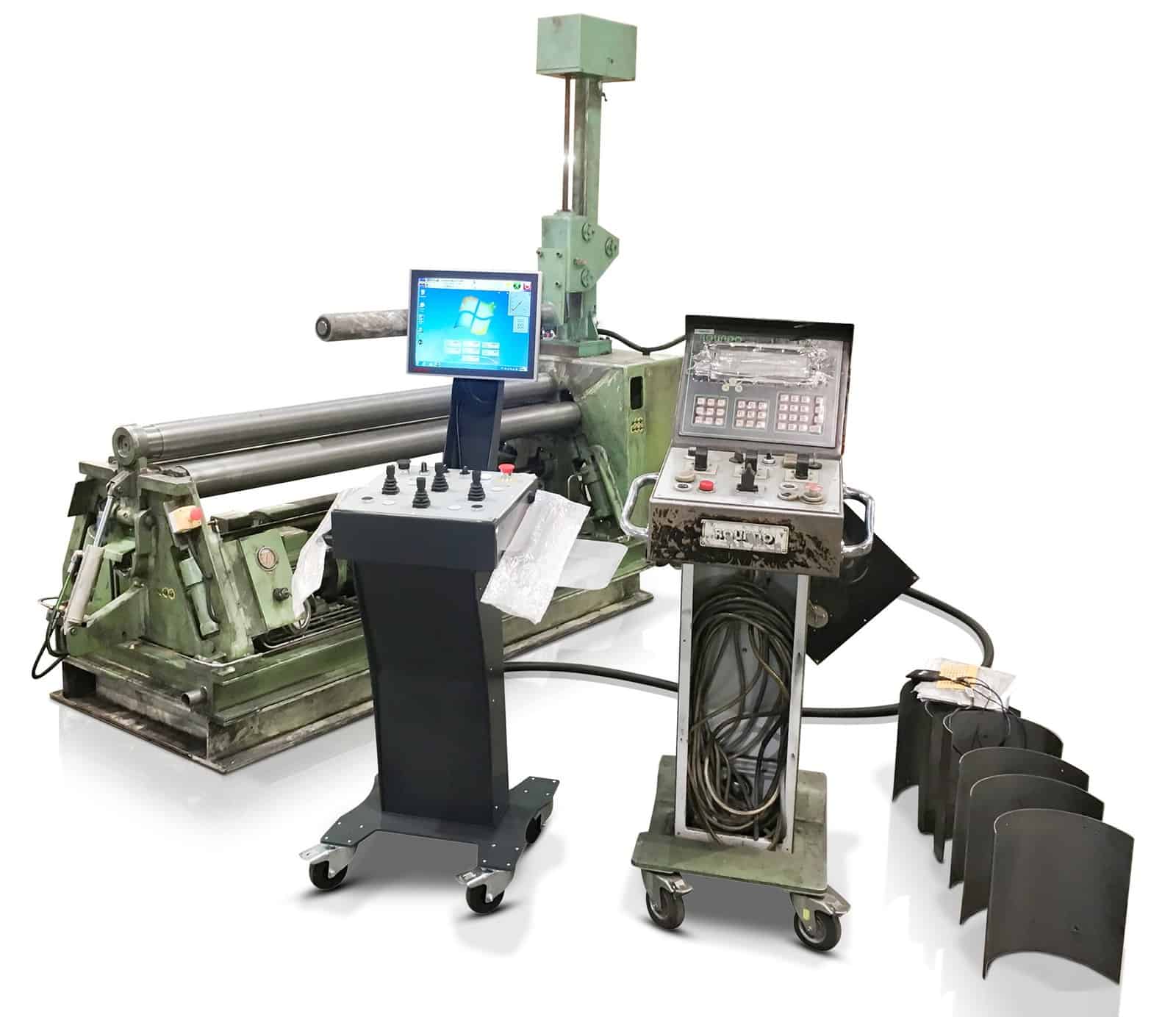

The frames of our machines are fabricated, welded steel (ST-52I. Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. NC playback and CNC graphic control systems are available as optional accessory.

The “Emergency Stop” button in large machinery stops all functions of a machine in an emergency situation. The “Emergency SIDI)” button located at both sides of the front side of the machine and also on the control panel is a part of high level security precautions.

Side supports and elevator carry the weight of the iron sheet and prevent deformation.

Out feding of the bent sheet is easy by the opening of hydraulic drop end.

Since the swing guides are designed according to the levelarrn pirinciple, the machine provides more power to bend the material and by the help of this power, ore-bending is getting perfect and flat ends is decreased to minimum level.

Standard Equipments:

  • Cone Bending device
  • Induction hardened rolls
  • Digital display for both side rollers
  • Machine body is steel (ST-52) construction
  • Seperafe control panel
  • Two speed control
  • All rollers mounted in bearing
  • Drop end controlled from control panel in order to release easily bent metal sheet and tfted upper rolls
  • Cone open and close controlled from panel
  • Center rolls are driven with hydraulic motor and planetry gear box
  • Suitable for CE, ISO 9001-2308, TSEK and TUROUM certificates

Media

Bending made easy, fast and great!

Watch our SB4 65S create magnificent results with just the touch of a few buttons.
